LCD Dual Sides Floor Standing Screen

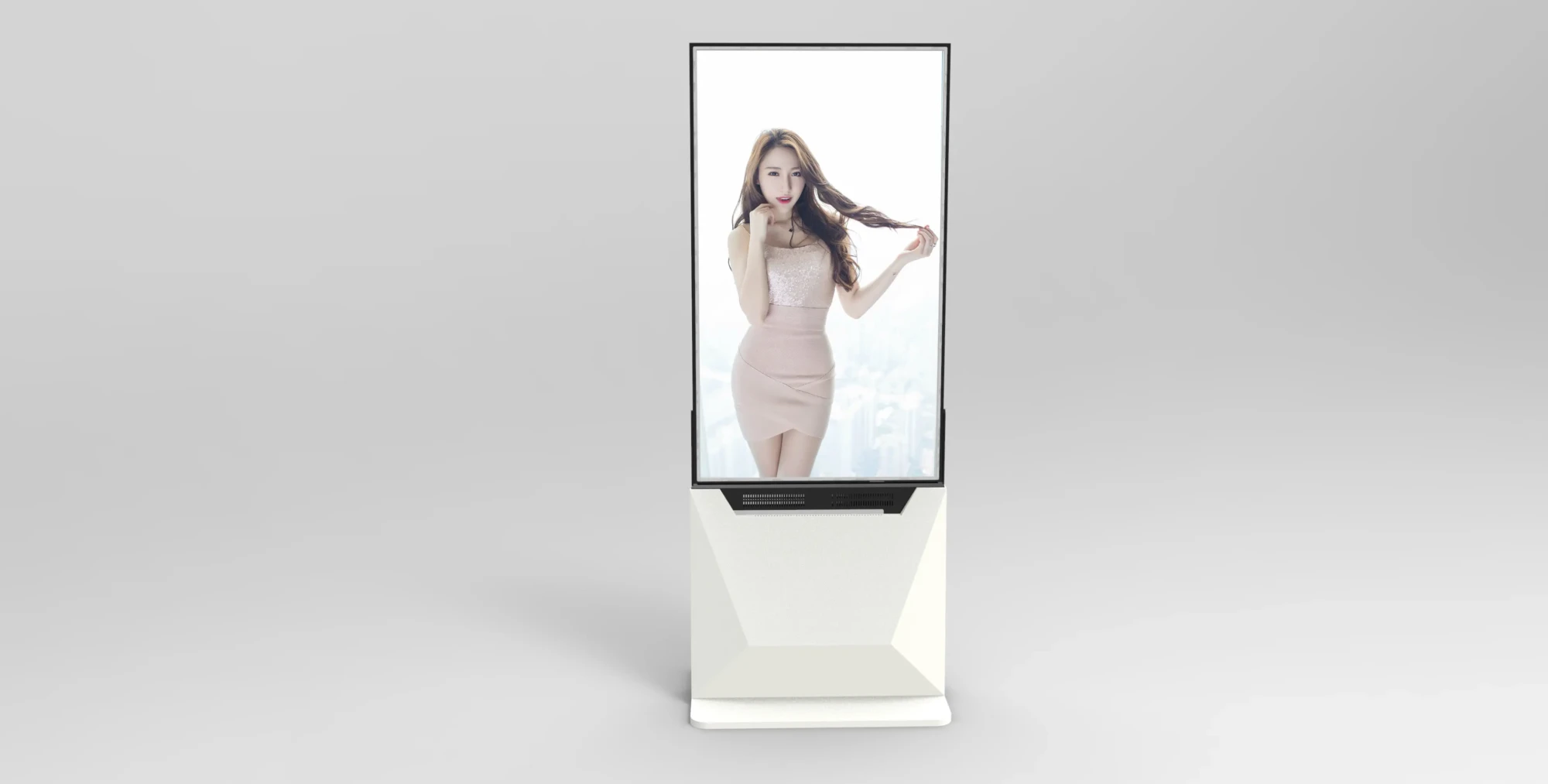

- Product Picture
- Features
- TFT HD LCD screen, high brightness, high contrast, high resolution
- Various and easily operation option: HDMI, USB, SD, android
- Convenient interface:USB;HDMI output ;WIFI;LAN; Audio output
- With safety lock and Tempered glass
- Free CMS system (Remote control;Easy content management)
- Split screen; Scrolling caption; Timing switch; Auto play; Loop Play
- Support Pic,Video,Audio,Flash,PPT,Word,Excel,PDF, time date
- Super thin and portable for movement designSuper thin and portable for movement design
- TypeA can be hung only vertical 90degree, typeBโs hanging degree is adjustable; different or same content on each screen is available
- Detail specification
1). Main parts
| ย
ย ย ย Panel |
Type of Panel | 55โย ย LCD ย panel |
| Display size(mm) | 1209.6ร680.4๏ผH*V๏ผ | |
| Max resolution | 1920*1080 | |
| Display color | 16.7M | |
| Pixel Pitch(mm) | 0.4845(H)ร0.4845(V) | |
| Brightness | 450cd/m2 | |
| Contrast Ratio | 1300:1 | |
| Visual angle | 178ยฐ/178ยฐ | |
| Response time | 5ms | |
| Horizontal frequency | 50-60KHZ | |
| Vertical frequency | 50-60KHZ | |
| Life(hrs) | 60,000(hrs) | |
| Input and output (port(android OS optional) | USB | 2 |
| Wifi | 1 | |
| LAN(RJ45) | 1 | |
| HDMI in | 1 | |
| Speaker | 5W*2 | |
| Touch | No | |
| Video color system | PAL/NTSC/SECAM | |
| Language version | support multi-languauge(english, chinese, spanish…,ect) | |
| Application | Indoor | |
| PPower | Power supply | AC100~240V 50 /ย 60 HZ |
| Power plug | 1.2metre power supply cable | |
| Maximum power consumption | <=75W | |
| Standby power consumption | <5W | |
| TTemperature & IP | Working temperature | 0ยฐC~50ยฐC |
| Storage temperature | -20ยฐC~60ยฐC | |
| Working humidity | 0~90% | |
| Storage humidity | 0~90% | |
| IP | IP54 | |
| Appearance | Color | White enclosure+white frame |
| Material | ย Glassย frame+LCD panel+electronic components | |
| Installation | Floor standing | |
| Others | Front side | metal frame |
| Package | ย PE Foam, wooden box as final package | |
| Accessories | quality card*1, warranty card*1, key*1, IR remote*1 | |
Remarks: other configuration please check with customer service.
2). Android operation system
| # | Configuration | Details |
| Built-inandroid | Main board
RAM STORAGE Resolution |
RK3568 4-cores@1.8GHz |
| RAM | 2gb | |
| ROM | 16gb | |
| Support max resolution | 3840*2160 | |
| Internet support | LAN, WIFI | |
| Paly mode | Support Loop Playback, multi-play etc.
|
|
| USBย interface | 2*USB host
|
|
| Outside storage | 1*TFย card slot | |
| HDMI | 1*HDMIย input | |
| Audio | 2*speaker 8ฮฉ5W | |
| RTC | Support | |
| Time OFF/ON | Support | |
| System Upgrade | USB/ Internet | |
| Version | Android 11 | |
| Vedio format | wmvใaviใflvใrmใrmvbใmpeg ใtsใmp4ย etc.
|
|
| ย Picture format | BMPใPNGใJPGย etc. | |
| Application | Built-in | |
| POWER | DC 12V(built-in) |
