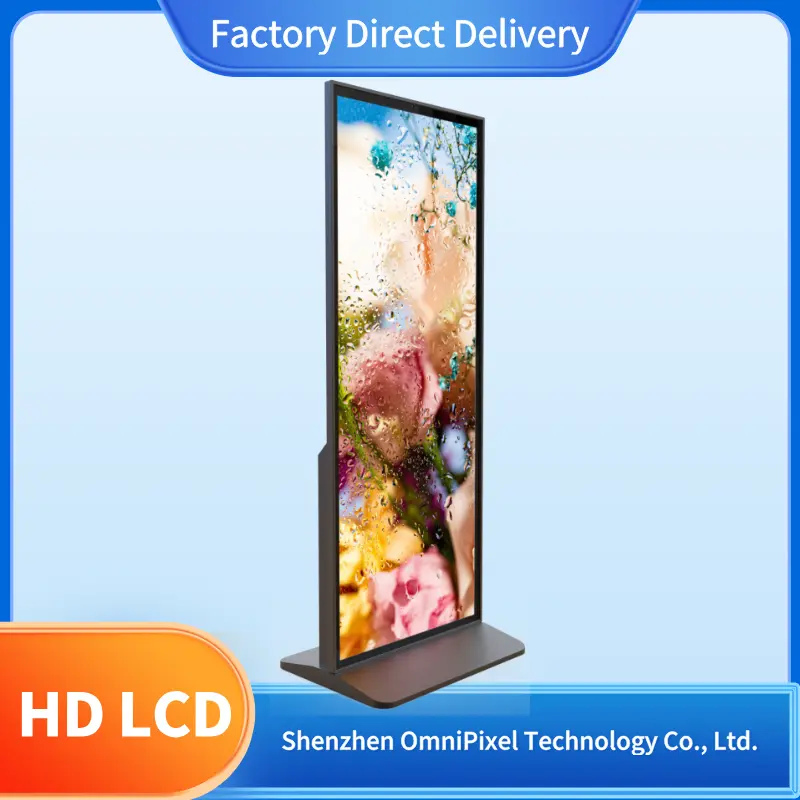

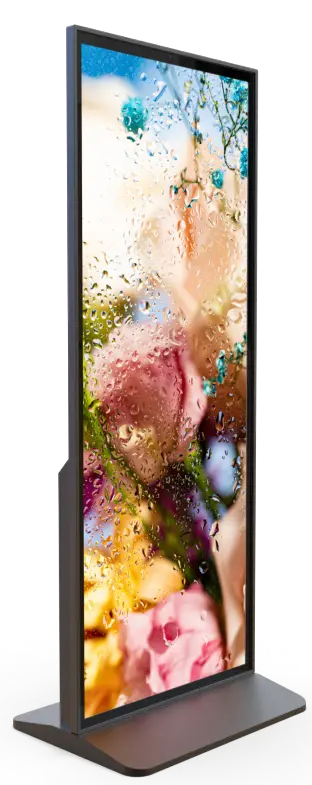

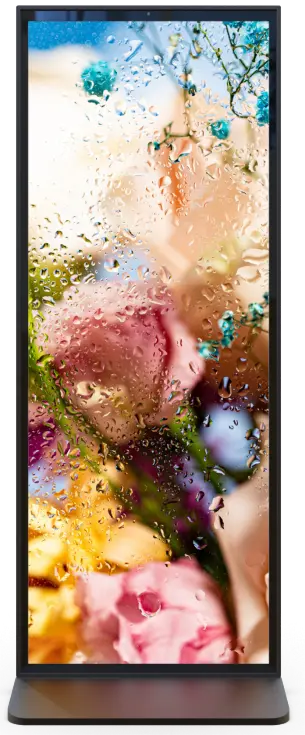

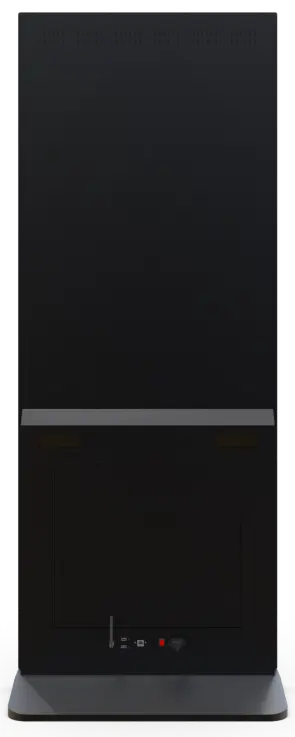

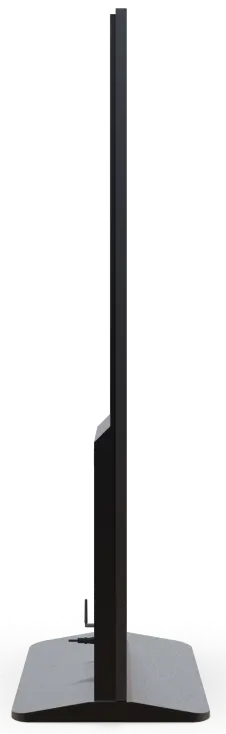

69.3inch LCD Advertising Screen
Floor standing Serial-Data sheet
MODEL๏ผDN6930-FA-T
- Enclosure๏ผUsing Industrial panel,All in one panel,Thin bezel,Easy installation and maintenance,Supporting 7*24 working. Safety lock, surface tempered glass.
- Interfaces๏ผUSB,HDMI in/out, WIFI, Audio,4G module is optional
- Functions:10touch points. Cloud server for free, Remotely updating program via CMS system. Supporting timing,auto/loop play.
- Widely used for Government,Education,Mall,Shop,Bus/subway station Shelf, etc.
- Premium๏ผHigh brightness/contrast/resolution, Smart,multi-functions.
- OEM/ODM. More customized requirements can be achieved.
1ใPanel Parameters
| Item | Description |
| Diagonal dimensions | 69.3inch |
| Backlight type | WLED |
| Display area size | 1649.56mm(H)x618mm(V) |
| Touch type | IR touch |
| Resolution | 3840*1440 |
| Brightness | 450cd/m2 |
| Display ratio | 16:9 |
| Viewing angle | 178ยฐ/178ยฐย full angle |
| Display color | 16.7Mย ,72%NTSC |
| Refresh rate | 60HZ |
| Contract | 1000:1 |
| Response Time | 8ms |
ย
2.Electrical Performance
| Applicable places | Indoor |
| Voltage | AC110-220V |
| Standby power | โฆ1W |
| Operating environment | Temperatureโ0โ~55โ/Humidity 10%RH~90%RH |
| Storage environment | Temperatureโ5โ~60โ/Humidity 10%RH~90%RH |
ย
3.System configuration- Android
| CPU | RK3568 |
| RAM | 2GB |
| ROM | 16GB |
| Version | Android 11 |
| Internet | LANใWiFi |
| Bluetooth | BT4.0 |
| Input interfaces | 2*USB ,1*RJ45, 1*TF card slot |
| Output interfaces | HDMI*1 |
| Audio output | 1*3.5mm audio interface |
| Optional | 4G Model |
ย
4.System functions
| Decode | Support 1080P video and picture decoding and playback | ||
| APPS | Supporting multi-advertising apps | ||
| TF card | 32GB TF card | ||
| Languages | ChineseใEnglishใKoreanใJapaneseใSpanishใGerman etc. | ||
| Boot logo | Supporting video or picture boot logo. | ||
| IR remote | Supporting remote control to operate system | ||
| Audio | Built in 2*speaker 8ฮฉ5W | ||
| Mouse mode | Supporting Wire/Wireless mouse, keyboard to operate | ||
| System upgrade | Supporting local/remotely upgrade | ||
| Supporting display | Audio:MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP | ||
| Picture๏ผJPGใBMPใPNG etc. | |||
| Video๏ผAVI,,rm๏ผrmvb๏ผ MKV๏ผWMV๏ผMOV๏ผMP4 etc. | |||
5.Packaged&Packing list
| Package | Carton box with PE Foam, wooden box as final package |
| Screen | *1 |
| Bracket | *1 |
| Power cable | *1 (1.2 mete cable) |
| Remote control | *1 |
| WIFI antenna | *1 |
| Warranty card certificate | *1 |
ย
6.Enclosure parameters
| Color | Black glass,frame,enclosure(Or white) |
| Installation method | Wall mounted or hanging |
| Material quality | Tempered glass + SPCC |
ย

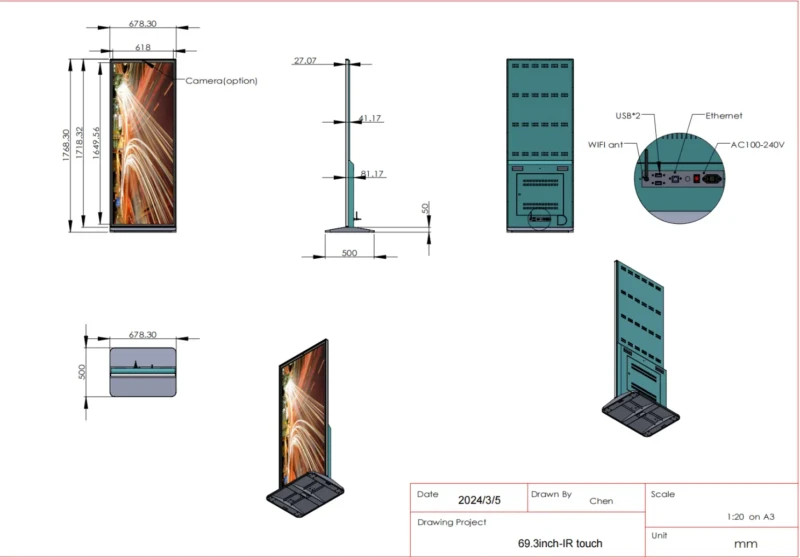

7.Drawing
