LCD commercial display DATA SHEET
LCD digital signageย 55inch

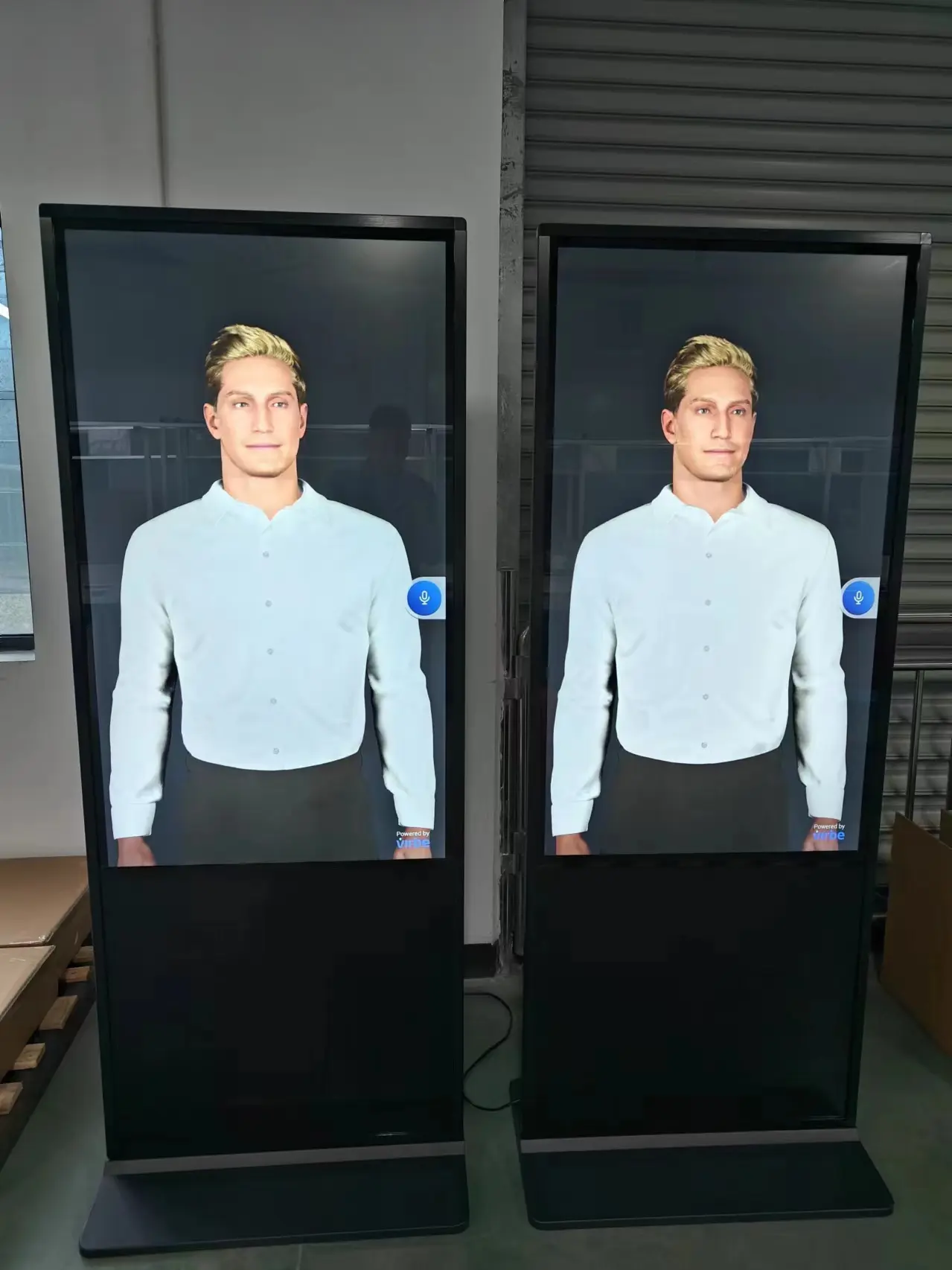

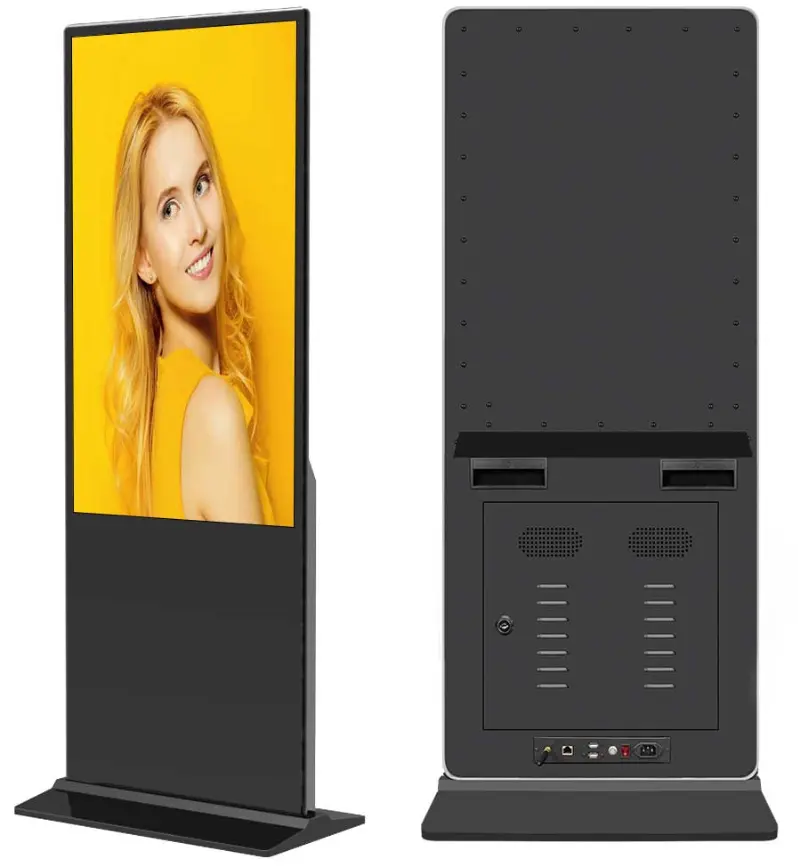

Product Picture(Ref) Features
-
- TFT HD LCD screen, high brightness, high contrast, high resolution
- Various and easily operation option: HDMI, USB, SD, android, windows(support USB update)
- Convenient interface:USB;HDMI output ;WIFI;LAN; Audio output
- With safety lock and Tempered glass
- Free CMS system (Remote control;Easy content management)
- Split screen; Scrolling caption; Timing switch; Auto play; Loop Play
- Support Pic,Video,Audio,Flash,PPT,Word,Excel,PDF, time date
Detail specification
1). Main parts
| ย
ย ย ย Panel |
Type of Panel | 55โย ย LCD ย panel |

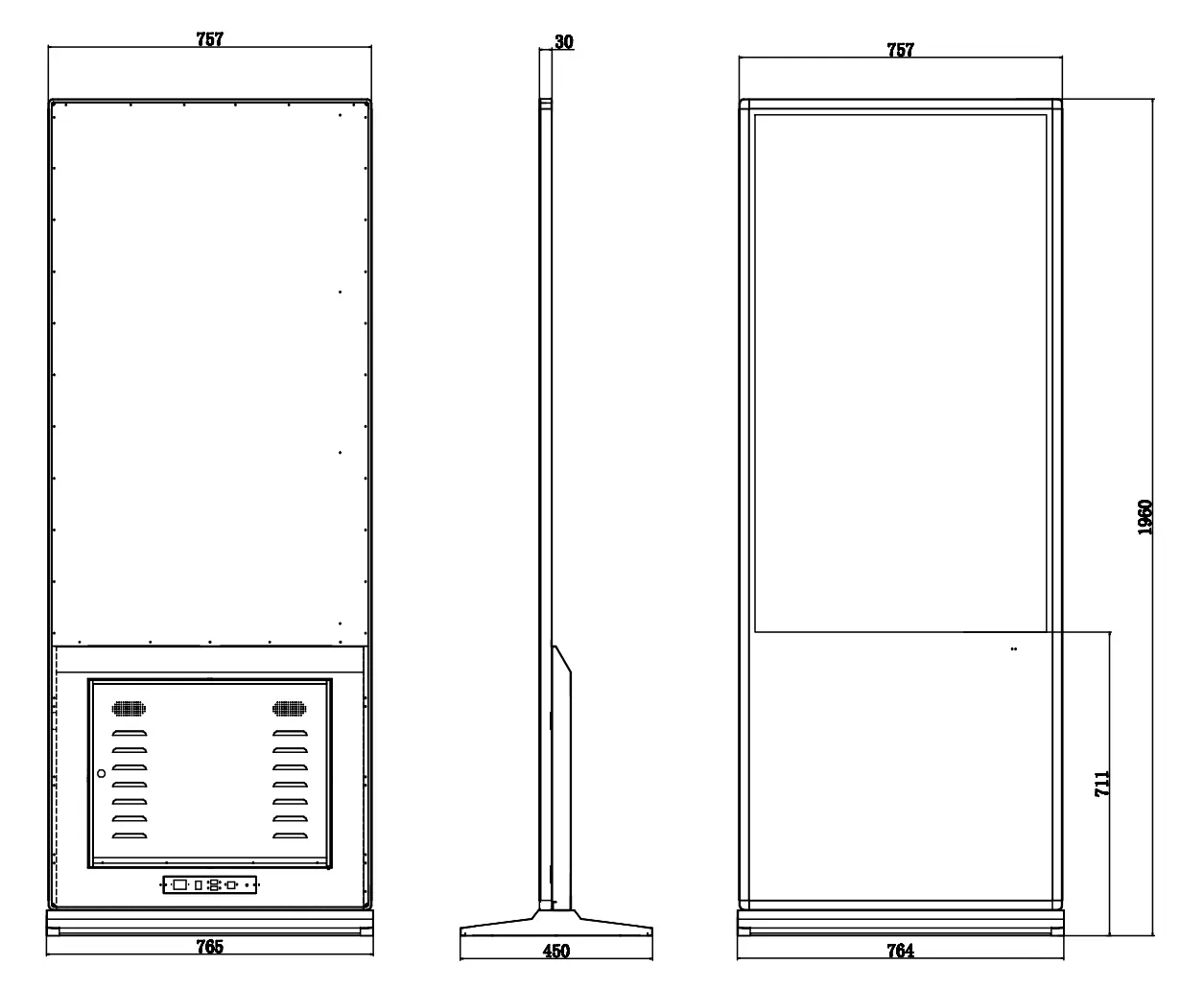

| Display size(mm) | 1209.6ร680.4๏ผH*V๏ผ | |
| Max resolution | 1920*1080(3840*2160 optional) | |
| Display color | 16.7M | |
| Pixel Pitch(mm) | 0.4845(H)ร0.4845(V) | |
| Brightness | 450cd/m2 | |
| Contrast Ratio | 3500:1 | |
| Visual angle | 178ยฐ/178ยฐ | |
| Response time | 5ms | |
| Horizontal frequency | 50-60KHZ | |
| Vertical frequency | 50-60KHZ | |
| Life(hrs) | 60,000(hrs) | |
| Input and output (port(android OS optional) | USB | 2 |
| Wifi | 1 | |
| LAN(RJ45) | 1 | |
| HDMI output | 1 | |
| Speaker | 5W*2 | |
| IInput and output port(window OS optional) | VGA output | 1 |
| HDMI output | 1 | |
| USB | 4 | |
| LAN(RJ45) | 1 | |
| PC Audio | 1 | |
| Mic input | 1 | |
| Wifi | 1 | |
| Speaker | 5W*2 | |
| Video color system | PAL/NTSC/SECAM | |
| Language version | support multi-languauge(english, chinese, spanish…,ect) | |
| Application | Indoor or half outdoor | |
| PPower | Power supply | AC100~240V 50 /ย 60 HZ |
| Power plug | 1.2metre power supply cable | |
| Maximum power consumption | <=10W | |
| Standby power consumption | <5W | |
| TTemperature & IP | Working temperature | -5ยฐC~50ยฐC |
| Storage temperature | -20ยฐC~60ยฐC | |
| Working humidity | 0~90% | |
| Storage humidity | 0~90% | |
| IP | IP54 | |
| Appearance | Color | Black glass+silver frame+back enclosure |
| Material | Sheet metal+tempered glass+LCD panel+electronic components | |
| Installation | Floor standing | |
| Others | Front of table | Tempered glass forย protect from scratch-proof, explosion-proof |
| Package | Carton box with PE Foam, wooden box as final package | |
| Accessories | quality card*1, warranty card*1, key*1, remote*1 | |
Remarks: other configuration please check with customer service.
ย
2). Windowย operation system
| # | Configuration | Details | |
| Built-in window | Main board | Industrial MINI-ITX | ย |
| CPU | Intel ย I7-6700 | ย | |
| graphicsย card | Nvdia RTX2060 6G | ย | |
| Mini-PCIE | 2*Mini-PCIE๏ผ1*MSATA | ย | |
| storage | SSD256gb | ย | |
| RAM | 8gb | ย | |
| Audio | Intelยฎ HD Audio | ย | |
| LAN | Integration 10/100/1000Mย adaptive internet card | ย | |
| 4G๏ผoptional๏ผ | 802.11b/g/n WIFI(optional๏ผ | ย | |
| USBย interface | On board 2*USB2.0๏ผfront 4*USB2.0ย standard interface๏ผH81ย 2*USB3.0๏ผ | ย | |
| Output | DP+HDMI | ย | |
| VGA | 1*VGAย OUTPUT | ย | |
| Standard storage | 2.5INCH 500G SATA๏ผstorage can be choose๏ผHDD can be choose | ย | |
| Audio interface | 1 | ย | |
| Speaker | 2*5W | ย | |
| Mic INTERFACE | MIC*1 | ย | |
| Operation system | Support Windows XP๏ผsupport singal point for touch function๏ผใWin7ใWIN8ย etc. | ย | |
| Operation system | Licensed Microsoft windosws10 | ย | |
