43inch LCD Advertising Screen
Wall mounted Serial-Data sheet
MODEL๏ผDN4300-WA๏ผFIGURE๏ผ
- Enclosure๏ผUsing Industrial panel,All in one panel,Thin bezel,Easy installation and maintenance,Supporting 7*24 working. Safety lock, surface tempered glass.
- Interfaces๏ผUSB,HDMI in/out, WIFI, Audio,4G module is optional
- Functions:10touch points. Cloud server for free, Remotely updating program via CMS system. Supporting timing,auto/loop play.
- Widely used for Government,Education,Mall,Shop,Bus/subway station Shelf, etc.
- Premium๏ผHigh brightness/contrast/resolution, Smart,multi-functions.
- OEM/ODM. More customized requirements can be achieved.
1ใPanel Parameters
| Item | Description |
| Diagonal dimensions | 43inch |
| Backlight type | WLED |
| Display area size | 941.184mm(H)x529.416mm(V) |
| Touch type | Capacitive touch |
| Resolution | 3840*2160 |
| Brightness | 350cd/m2 |
| Display ratio | 16:9 |
| Viewing angle | 178ยฐ/178ยฐย full angle |
| Display color | 16.7Mย ,72%NTSC |
| Refresh rate | 60HZ |
| Contract | 1000:1 |
| Response Time | 8ms |
ย
2.Electrical Performance
| Applicable places | Indoor |
| Voltage | AC110-220V |
| Standby power | โฆ1W |
| Operating environment | Temperatureโ0โ~55โ/Humidity 10%RH~90%RH |
| Storage environment | Temperatureโ5โ~60โ/Humidity 10%RH~90%RH |
ย
3.System configuration- Monitor verison
| Input interfaces | 1*USB |
| input interfaces | HDMI*1 |
| Audio output | 1*3.5mm audio interface |
ย
4.Packaged&Packing list
| Package | Carton box with PE Foam, wooden box as final package |
| Screen | *1 |
| Bracket | *1 |
| Power cable | *1 (1.2 mete cable) |
| Remote control | *1 |
| WIFI antenna | *1 |
| Warranty card certificate | *1 |
5.Enclosure parameters
| Color | Black glass,frame,enclosure(Or white) |
| Installation method | Wall mounted or hanging |
| Material quality | ย SPCC |

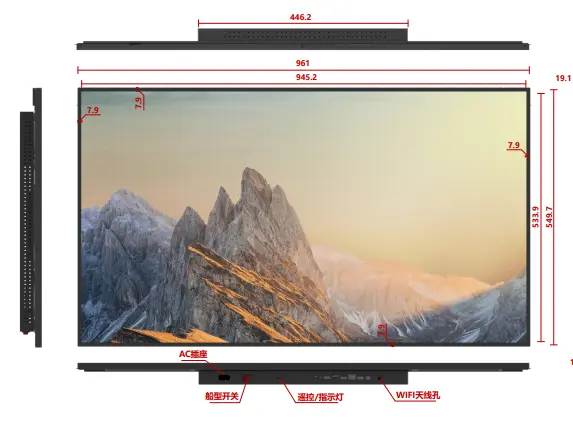

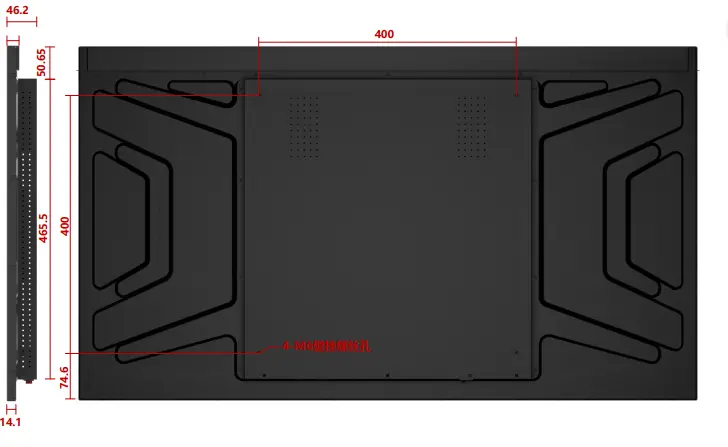

- Drawing
