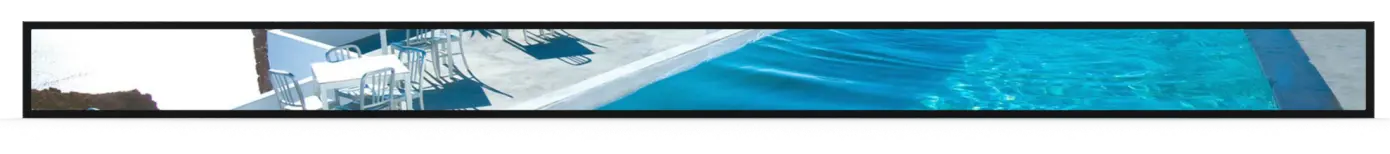

35inch LCD Advertising Screen
BAR LCD SCREEN Serial-Data sheet
MODEL๏ผDN3500-WA

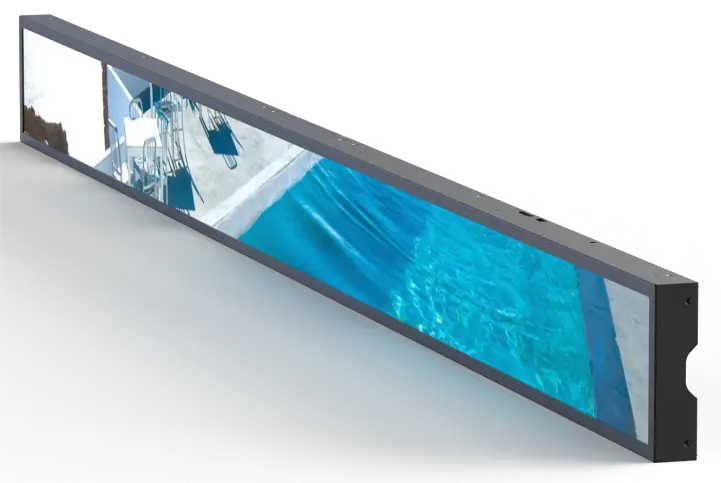

- Enclosure๏ผUsing industrial panel,Ultra thin design,Wall mounted bracket for installation easily,Safety lock.
- Features: life span can reach 60,000 hours,Supporting 7*24 working.
- Functions: Cloud server for free, Remotely updating program via CMS system. Supporting timing,auto/loop play ,Splitting screen.
- Widely used for Government,Education,Mall,Shop,Bus/subway station Shelf, etc.
- Premium๏ผHigh brightness/contrast/resolution, Smart,multi-functions.
- OEM/ODM. More customized requirements can be achieved.
1ใPanel Parameters
| Item | Description |
| Diagonal dimensions | 35inch |
| Backlight type | WLED |
| Display area size | 880mm(H)x48.8mm(V) |
| Touch type | Non touch (Optional:Touch ) |
| Resolution | 2880*158 |
| Brightness | 500-700cd/m2 |
| Viewing angle | 178ยฐ/178ยฐย full angle |
| Display color | 16.7Mย ,72%NTSC |
| Refresh rate | 60HZ |
| Contract | 1000:1 |
| Response Time | 8ms |
ย
2.Electrical Performance
| Applicable places | Indoor |
| Voltage | DC12V |
| Standby power | โฆ1W |
| Operating environment | Temperatureโ0โ~55โ/Humidity 10%RH~90%RH |
| Storage environment | Temperatureโ5โ~60โ/Humidity 10%RH~90%RH |
ย
3.System configuration- Android
| CPU | T972 |
| RAM | 2GB |
| ROM | 8GB |
| Version | Android 9.0 |
| Store expansion | Supports up to 64GB TF card expansion |
| Internet | Support 2.4G WiFi |
| Bluetooth | BT4.0 |
| Input interfaces | 2*Micro-USB,1*SD card, 1*TF card slot |
| Output interfaces | / |
ย
4.System functions
| APPS | Supporting multi-advertising apps |
| TF card | 32GB TF card |
| Languages | ChineseใEnglishใKoreanใJapaneseใSpanishใGerman etc. |
| Boot logo | Supporting video or picture boot logo. |
| IR remote | Supporting remote control to operate system |
| Audio | Built in 2*speaker 8ฮฉ5W |
| Mouse mode | Supporting Wire/Wireless mouse, keyboard to operate |
| System upgrade | Supporting local/remotely upgrade |
| Supporting display | Audio:MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Picture๏ผJPGใBMPใPNG etc. | |
| Video๏ผAVI,,rm๏ผrmvb๏ผ MKV๏ผWMV๏ผMOV๏ผMP4 etc. |
5.Packaged&Packing list
| Package | Carton box with PE Foam |
| Screen | *1 |
| Bracket | *1 |
| Power cable | *1 (1.2 meter cable) |
| Remote control | *1 |
| WIFI antenna | *1 |
| Warranty card certificate | *1 |

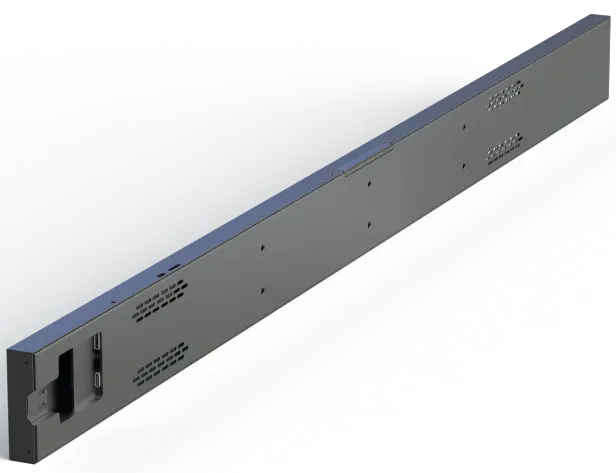

6.Enclosure parameters
| Color | Black glass,frame,enclosure(Or white) |
| Installation method | Wall mounted |
| Material quality | SPCC |

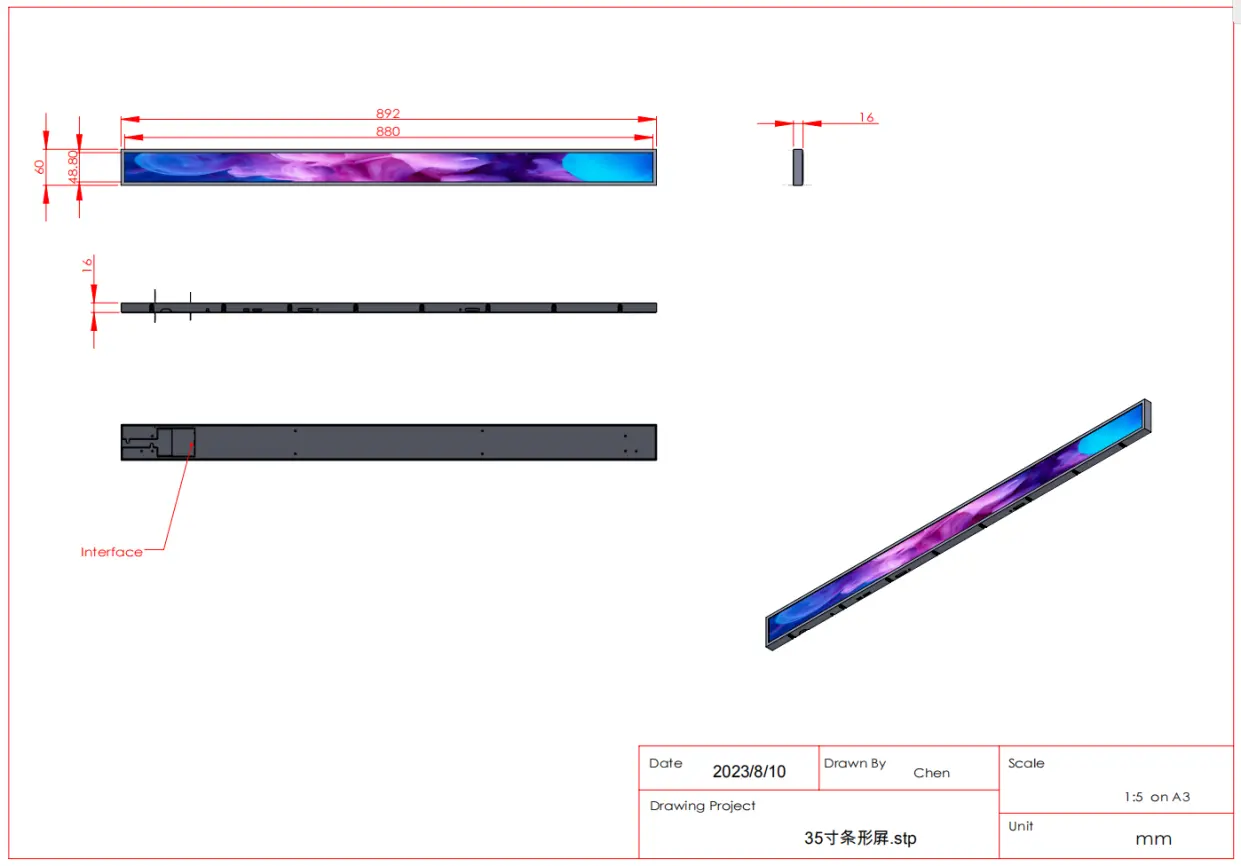

7.Drawing
