10.1inch LCD Advertising Screen
Wall mounted Serial-Data sheet
MODEL๏ผDN1010-WA
- Enclosure๏ผUsing Industrial panel,All in one panel,Thin bezel,Easy installation and maintenance,Supporting 7*24 working. Safety lock, surface tempered glass.
- Interfaces๏ผUSB,HDMI in/out, WIFI, Audio,4G module is optional
- Functions:10touch points. Cloud server for free, Remotely updating program via CMS system. Supporting timing,auto/loop play.
- Widely used for Government,Education,Mall,Shop,Bus/subway station Shelf, etc.
- Premium๏ผHigh brightness/contrast/resolution, Smart,multi-functions.
- OEM/ODM. More customized requirements can be achieved.
1ใPanel Parameters
| Item | Description |
| Diagonal dimensions | 10.1inch |
| Backlight type | WLED |

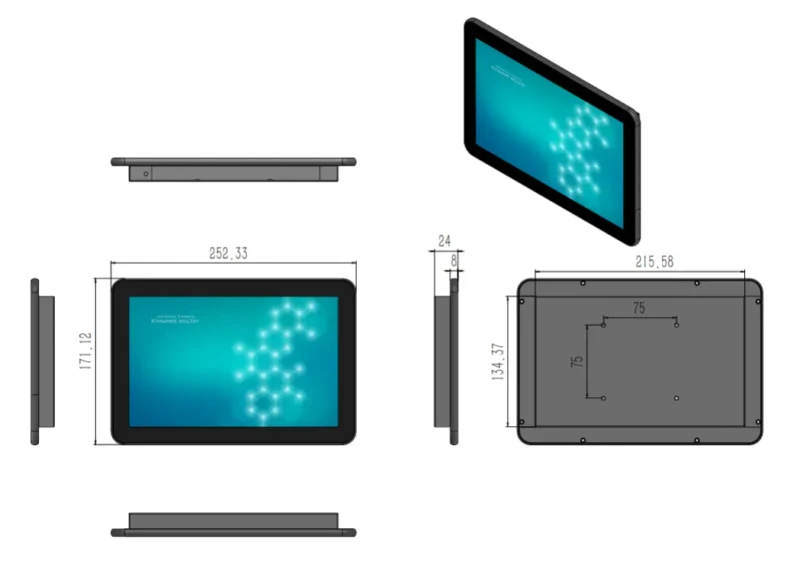

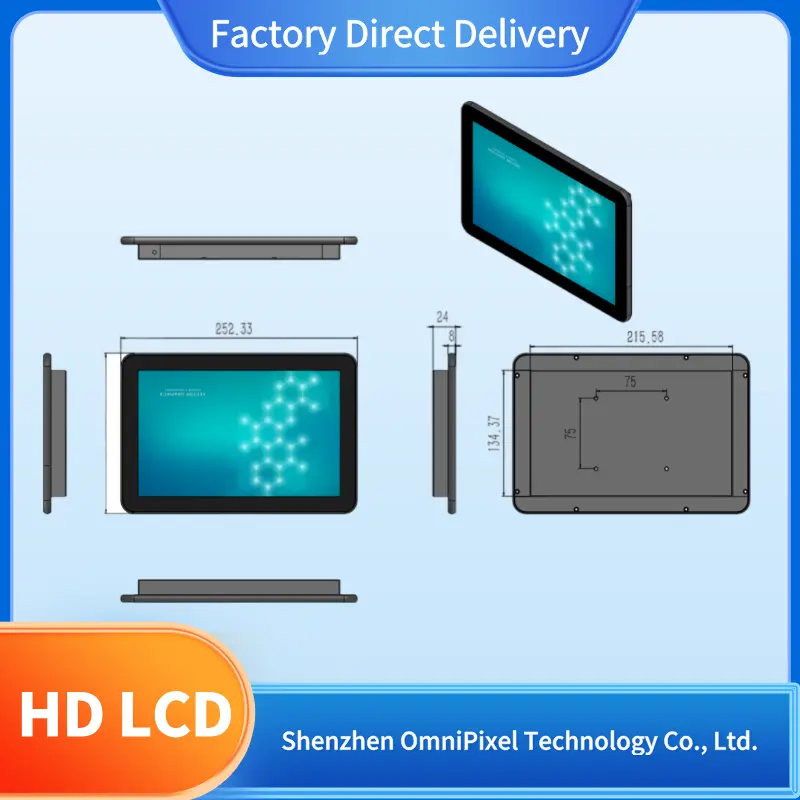

| Display area size | 215.58mm(H)x134.37mm(V) |
| Touch type | Non touch (Optional:IR touch or Capacitive touch) |
| Resolution | 1280*800 |
| Brightness | 350cd/m2 |
| Display ratio | 16:10 |
| Viewing angle | 178ยฐ/178ยฐย full angle |
| Display color | 16.7Mย ,72%NTSC |
| Refresh rate | 60HZ |
| Contract | 1000:1 |
| Response Time | 8ms |
ย
2.Electrical Performance
| Applicable places | Indoor |
| Voltage | DC12V |
| Standby power | โฆ1W |
| Operating environment | Temperatureโ0โ~55โ/Humidity 10%RH~90%RH |
| Storage environment | Temperatureโ5โ~60โ/Humidity 10%RH~90%RH |
ย
3.System configuration- Android
| CPU | RK3288 (For non-touch screen) |
| RAM | 2GB |
| ROM | 16GB |
| Version | Android 7.1.2 |
| Internet | LANใWiFi |
| Bluetooth | / |
| Input interfaces | 2*USB ,1*RJ45, 1*TF card slot |
| Output interfaces | HDMI*1 |
| Audio output | 1*3.5mm audio interface |
ย
4.System functions
| Decode | Support 1080P video and picture decoding and playback |
| APPS | Supporting multi-advertising apps |
| TF card | 32GB TF card |
| Languages | ChineseใEnglishใKoreanใJapaneseใSpanishใGerman etc. |
| Boot logo | Supporting video or picture boot logo. |
| IR remote | Supporting remote control to operate system |
| Audio | Built in 2*speaker 8ฮฉ5W |
| Mouse mode | Supporting Wire/Wireless mouse, keyboard to operate |
| System upgrade | Supporting local/remotely upgrade |
| Supporting display | Audio:MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Picture๏ผJPGใBMPใPNG etc. | |
| Video๏ผAVI,,rm๏ผrmvb๏ผ MKV๏ผWMV๏ผMOV๏ผMP4 etc. |
5.Packaged&Packing list
| Package | Carton box with PE Foam, wooden box as final package |
| Screen | *1 |
| Bracket | *1 |
| Power cable | *1 (1.2 mete cable) |
| Remote control | *1 |
| WIFI antenna | *1 |
| Warranty card certificate | *1 |

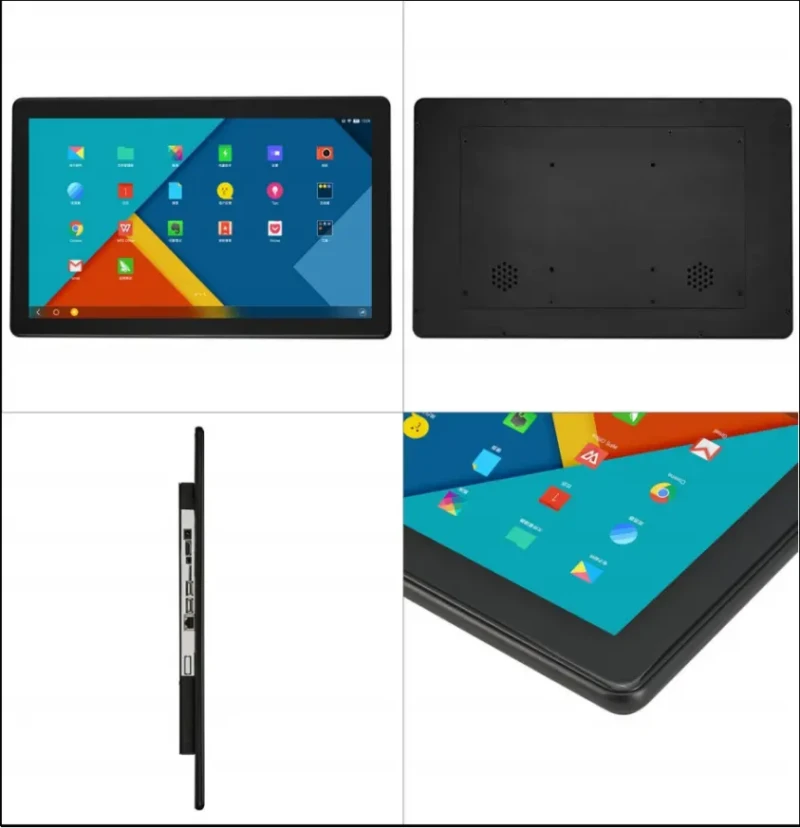

6.Enclosure parameters
| Color | Black glass,frame,enclosure(Or white) |
| Installation method | Wall mounted or tablet |
| Material quality | Tempered glass + SPCC |
